Load and Run

Attention

Make sure that your project is set up correctly for run and debug.

Make sure that your target is connected, before loading the application onto it. You can use pyOCD to verify target connectivity.

  1. Open a Terminal, and enter pyOCD list to check attached hardware: Check connected hardware with pyOCD
  2. In the Solution outline header, click Run icon. This executes the "load and run" command that flashes the project onto the target and issues a reset to start the application.

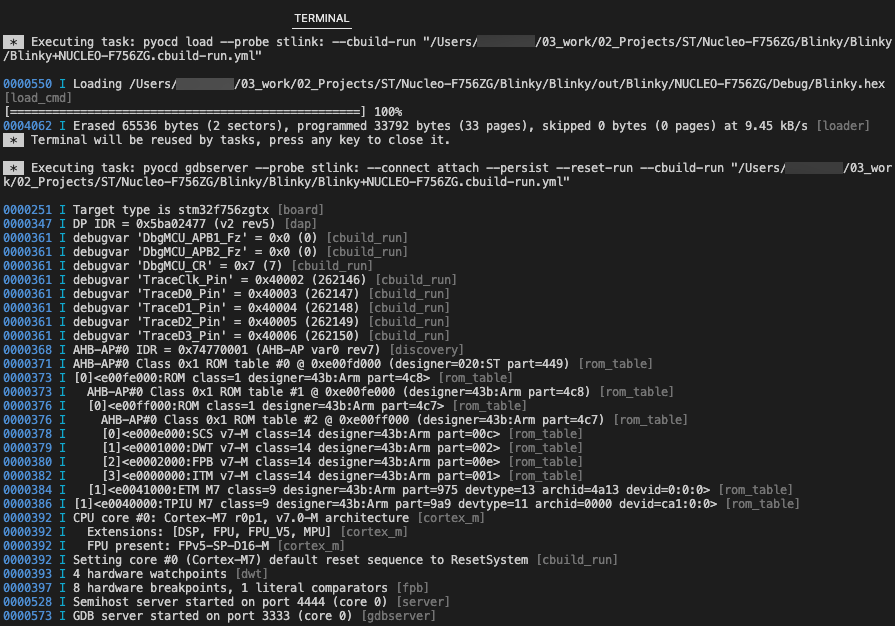

  3. To verify that the step has run correctly, check the Terminal output: Flash download output

Notes

  • When you have several solutions in one folder, VS Code ignores the tasks.json and launch.json files that you created for each solution. Instead, VS Code generates new JSON files at the root of the workspace in a .vscode folder and ignores the other JSON files. As a workaround, open one solution first, then add other solutions to your workspace with the File > Add Folder to Workspace option.
  • If you are using a multicore device and you did not specify a "processorName" in the launch.json file, select the appropriate processor for your project in the Select a processor drop-down list at the top of the window.
