Work with Zephyr applications

It is possible to build and debug Zephyr applications that use the west build system with Keil Studio. The CMSIS solution extension displays an outline view of the Zephyr project.

Zephyr applications in the CMSIS Solution extension

Prerequisites

To work with Zephyr-based applications, make sure that the following is set up on your machine.

Zephyr installation

Follow the Zephyr Getting Started Guide for your host operating system and install Zephyr in a central location on your machine.

Set environment variables

For the build process, it is required to set environment variables for the CMSIS Solution extension.

  • Open the Extension settings and navigate to CMSIS Solution.
  • Select if you want to set the Environment Variables for the User or the current Workspace.
  • Use Add Item to add the following environment variables:
Item Value
ZEPHYR_BASE $HOME/zephyrproject/zephyr
PATH $HOME/zephyrproject/.venv/bin
VIRTUAL_ENV $HOME/zephyrproject/.venv

Note

On Windows, specify the PATH as $HOME/zephyrproject/.venv/Scripts

  • This will be translated into the following JSON code:
    "cmsis-csolution.environmentVariables": {
        "ZEPHYR_BASE": "$HOME/zephyrproject/zephyr",
        "PATH": "$HOME/zephyrproject/.venv/bin",
        "VIRTUAL_ENV": "$HOME/zephyrproject/.venv"
        },

Attention

The workspace settings are stored in the .vscode\settings.json file. If you use "Initialize Git repository" when creating a csolution, this file is ignored by default.

Settings

Copy the Zephyr application directory that you want to use to your CMSIS solution workspace/folder. Refer to the example available on GitHub: CMSIS-Zephyr.

Csolution settings

  • In a csolution.yml file, you may have west build-specific settings.
  • You must not have a cproject.yml file present. Instead, the csolution.yml file points to the Zephyr project path:
  # List related projects.
  projects:
    - west:
        app-path: ./blinky

Zephyr application settings

When using the Arm GNU Toolchain for building the project via vcpkg, make sure that the C library shipped with the toolchain. This can be ensured with the following settings in the Zephyr prj.conf file:

# Use Newlib from the Arm GNU Toolchain
CONFIG_NEWLIB_LIBC=y
# Disable Picolibc
CONFIG_PICOLIBC=n
CONFIG_PICOLIBC_USE_MODULE=n
CONFIG_MINIMAL_LIBC=n

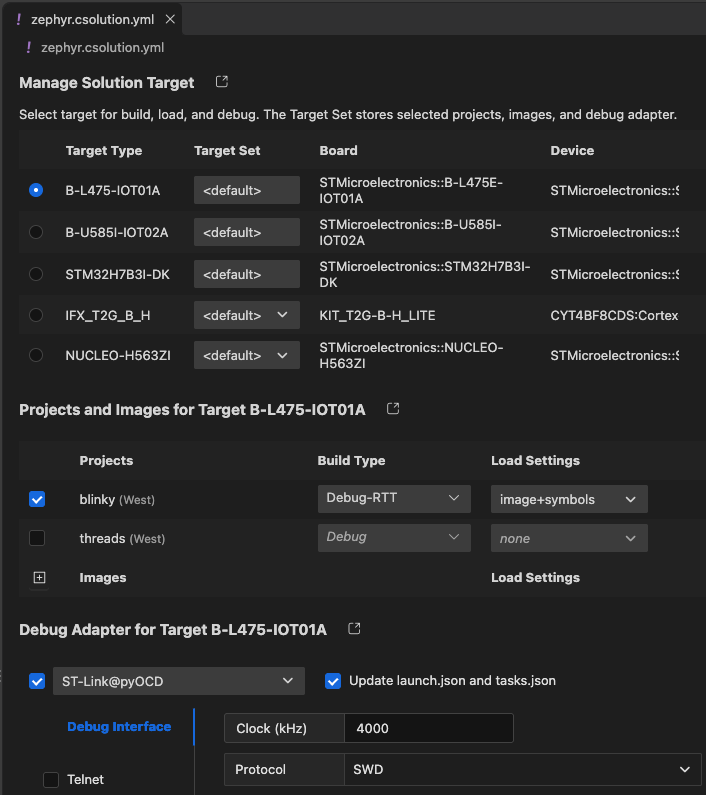

For managing run and debug configurations, continue to manage the solution.
